Electric Assembly Tools

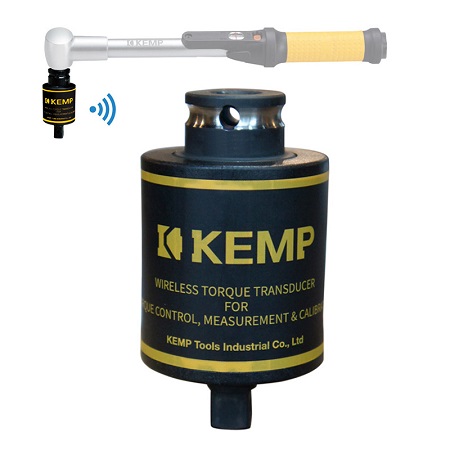

Wireless Torque Transducer & Controller Types of supporting tools：torque multiplier mechanism wrench, torque multiplier, mechanical torque wrench Measurable signal source：torque, angle. When used with E-BTM-C controller, it can freely switch 60 RF working frequency bands. The sensor will automatically detect the health status (electricity + communication + torque + angle + number of uses) when it is turned on, etc. Real-time monitoring with screen display and warning sound reminder to avoid locking errors. Provide smart APP or software that supports Android and Windows (Microsoft) systems. The torque curve display is limited to the Windows system version, which can be monitored and managed from mobile phones / tablets / computers. Wireless sensor LED light signal display, in the process of operation, you can judge whether the lock is qualified or not from the light signal Data transmission and recording, digitize the work data, transmit it to the management software and store it, the storage method can be in the computer / MES system / cloud server. Origin：Taiwan KEMP Intelligence system The general assembly locking tool is upgraded to an assembly locking tool with intelligent control, data recording and real-time monitoring after combining the wireless torque sensor of the Kemp smart system. The wireless torque sensor upgrades general electric, pneumatic, and manual torque tools with the following functions. Locking programming can be set as production management, and the locking quantity, order and cycle function can be set. Display on the screens of mobile phones, tablets, and computers through software to monitor the locking process in real time, and have data display, visual prompts, and sound warning functions. Various locking result information, date and time, station number, torque angle, torque curve, data transmission and records, can be traced and managed after locking. Can be used as locking detection for quality management：torque detection, angle detection, data analysis functions. For more information, please go to KEMP official website or contact KEMP.

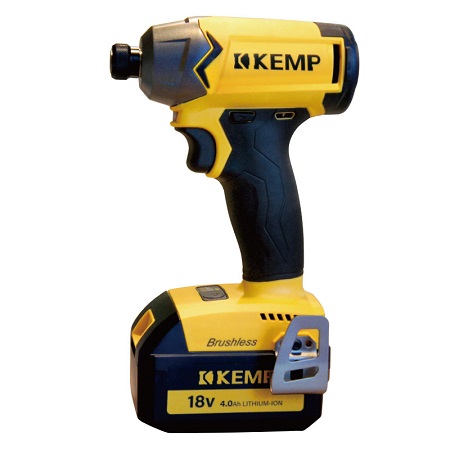

18V Brushless 1/4" Hex. 220Nm Cordless Impact Screwdriver Kit Torque Range：0~220Nm Breakaway Torque：300Nm Impact Per Minute：0-3500 ipm Free Speed：1700~2400rpm Max. tighting torque up to 220Nm. 5 mode drive control brings more output speed and power： 4 forward segment with torque & speed below： Segment 1：150Nm / 1700RPM Segment 2：180Nm / 2000RPM Segment 3：220Nm / 2400RPM Segment T：220Nm / 2400RPM Smart overload protection prevent tool and battery damage from overheating. 144mm Compact structural design breakthrough of space limitation.   KEMP High Efficiency Brushless Series New generation brushless cordless tool increse torque 20% improve work efficiency. Majorization the center of gravity brings comfort feel when handle for the operator. RS mode(Green light) - apply to shut down when sensing the screw or bolt has come loose. T mode(Red light) - Apply to protect screw, bolt head and surface of workpiece. Tool will shut down when sensing the hitting continuous 2 seconds. Battery power display panel Easy to check battery power . Single hand switch 2 speed system. LED light lighten work area. For more information, please go to KEMP official website or contact KEMP

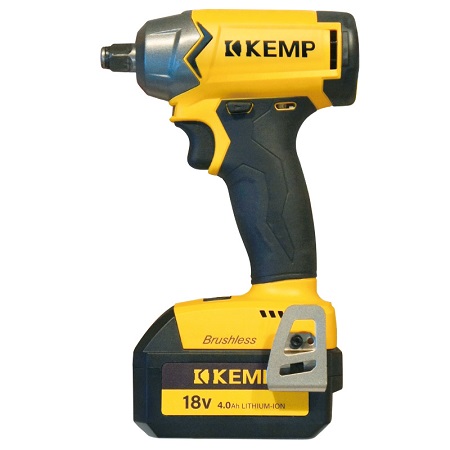

18V Brushless 1/2" Sq. 350Nm Cordless Impact Wrench Kit Torque Range：0~350Nm Breakaway Torque：475Nm Impact Per Minute：0-3400 ipm Free Speed：1700~2400rpm Max. tightening torque up to 350Nm. Impact frequency IPM：2000 / 2800 / 3400 5 mode drive control brings more output speed and power： 4 forward segment with torque & speed below： Segment 1：270Nm / 1700RPM Segment 2：300Nm / 2000RPM Segment 3：350Nm / 2400RPM Segment T：350Nm / 2400RPM Segment T mode apply to protect screw,  bolt head and surface of workpiece. Tool will shut down when sensing the hitting continuous 2 seconds. 2 reverse segment with torque & speed below： Segment 3：350Nm / 2400RPM Segment RS：350Nm / 2400RPM KEMP High Efficiency Brushless Tool Series A new generation of brushless rechargeable lifting tool torque, upgrade work efficiency during operation. The center of gravity ratio optimization of the tool is more stable, reduces the weight, improves the comfort of the grip, and allows the operator to use it more flexibly. After the tool detects that the screws and bolts are loose, the RS gear mode will automatically stop. The exquisite 147mm length design can operate freely without being restricted by a small space. With intelligent overload protection setting, it prevents the tool and battery from being damaged due to overheating. The 2-stage speed control can be switched left and right with only one hand. Equipped with LED lights, it provides lighting for easy operation during work. The battery case has a battery remaining power indicator light. For more information, please go to KEMP official website or contact KEMP

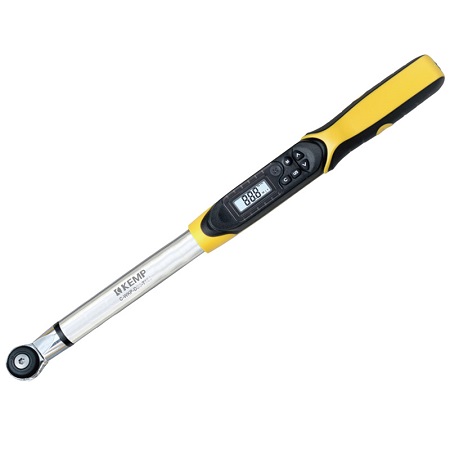

One Step Interchangeable Digital Torque Wrench Insert Drive Size：9x12mm Torque Range：6.8~135Nm Unit：0.1 Nm Torque Accuracy CW：±2% CCW：±3% angle accuracy：±2° Angle setting, set torque/angle value. 9 sets of presets, 50 records data memory P(Peak Hold ) / T(Track) Mode, Over Maximum torque records. LCD Readout，Five Units Selectable (N-m, ft-lb, in-lb, kg-cm, Degree ) Buzzer (warning signal) Anti-slip Handle Origin：Taiwan KEMP Interchangeable Digital Torque Wrench The digital display can instantly know the status of fastening and locking from the LCD screen, making the operation more precise and efficient. The setting of the quick-change head can change the tool head according to the requirements of the workpiece Operating Temperature Range：-10°C~ 60°C , Storage Temperature Range：-20°C~ 70°C , Humidity：Up to 90% non-condensing Test Pass: CE test，1M Drop Test，10G Vibration Test，Environmental test，Lift test Accuracy is guaranteed from 20% to 100% full scale. For more information, please go to KEMP official website or contact KEMP

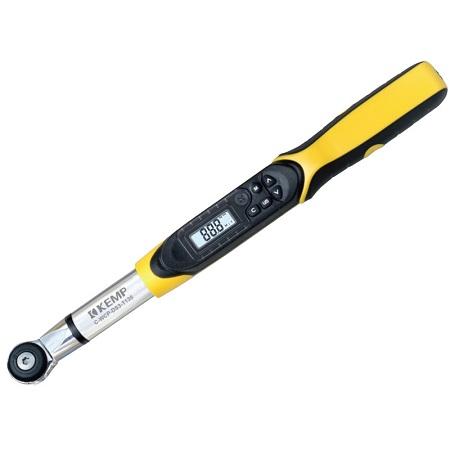

QC Interchangeable Digital Torque Wrench Insert Drive Size：14x18mm Torque Range：10~200Nm Unit：0.1 Nm Torque Accuracy CW：±2% CCW：±3% Quality inspection to confirm torque value of pretightened bolt.. M1：QC mode，P(Peak Hold ) mode only M2：Torque measurement mode:  P(Peak Hold )/ T(Track) Mode. 50 records  data memory P(Peak Hold )/ T(Track) Mode , Over Maximum torque records. LCD Readout，Four Units Selectable Nm , kg-cm , ft-lb , in-lb Origin：Taiwan QC Interchangeable Digital Torque Wrench. Used for screw locking in various industries such as machinery, bicycles, locomotives, automobiles, aerospace, etc. The head can be replaced according to the requirements of the workpiece. Digital display and data storage, high durability, high-quality choice for long service life Operating Temperature Range：-10°C~ 60°C , Storage Temperature Range：-20°C~ 70°C , Humidity：Up to 90% non-condensing Test Pass：CE test，1M Drop Test，10G Vibration Test，Environmental test，Lift test Buzzer warning signal (M1 mode only) Anti-slip Handle For more information, please go to KEMP official website or contact KEMP

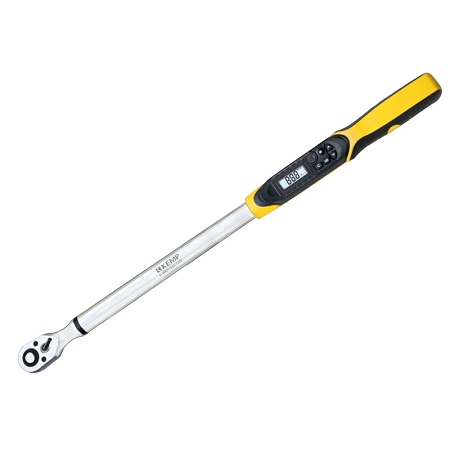

C-WRP-D Wireless Digital Torque Wrench Drive Size (Square)：1/2 inch Torque Range：17~340Nm Unit：0.1 Nm Torque Accuracy CW：±2% CCW：±3% angle accuracy：±2° Angle setting, set torque/angle value. 9 sets of presets, 2000 records data memory P(Peak Hold ) / T(Track) Mode, Over Maximum torque records. LCD Readout, Five Units Selectable (N-m, ft-lb, in-lb, kg-cm, Degree ) Buzzer sound warning, when there is an error, there will be a sound reminder Non-slip grip for comfortable grip Origin：Taiwan KEMP Interchangeable Digital Torque Wrench Wireless Digital Display Torque Wrench Through the wireless receiver, WIFI data two-way wireless transmission, intelligent upgrade torque wrench. It can be calibrated online, and the remote calibration is accurate, time-saving and efficient With software to monitor the working status Operating Temperature Range：-10°C~ 60°C , Storage Temperature Range：-20°C~ 70°C , Humidity：Up to 90% non-condensing Test Pass：CE test, 1M Drop Test, 10G Vibration Test, Environmental test, Lift test Accuracy is guaranteed from 20% to 100% full scale. For more information, please go to KEMP official website or contact KEMP

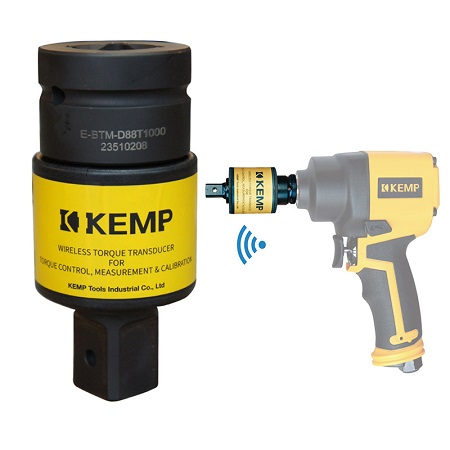

Wireless Torque Transducer & Controller After installing the wireless torque sensor, the electric or pneumatic tools that cannot display the data results can also have the data display and recording functions of smart tools Types of supporting tools：hydraulic pulse wrench, pneumatic constant torque tool, electric constant torque tool, pneumatic wrench Used with the E-BTM-C controller, the controller can display more locking result information, and immediately detect the correctness or give a warning when the locking is wrong. The built-in sensor will automatically detect the health status when it is turned on (including：power + communication + torque + angle + number of uses) It is possible to set the programming of the working cycle, which can avoid the omission of steps or the occurrence of errors Through the software, it can be monitored and managed from mobile phones/tablets/computers, and supports Android and Windows system smart APPs. The torque curve display is limited to the Windows system version. Wireless sensor LED light signal display, the light signal will display OK/NG in color. Through the transmission of the locking operation data, the working data can be converted into data, and can be recorded and stored in the computer/MES system/cloud server. And can be intelligently managed from the locking operation to the back-end tracking. Origin：Taiwan KEMP Intelligence system Combined with KEMP smart system wireless torque transducer, general assembly locking tools can be upgraded to assembly locking tools with intelligent control, data recording, and real-time monitoring. The wireless torque sensor upgrades the electric, pneumatic and manual torque tools to an intelligent system with the following functions It is possible to set the locking quantity, order, and cycle function, to prevent mistakes and improve the yield rate, and to realize data-based intelligent production management. The functions of data display, visual reminder and sound warning can be displayed on the screens of mobile phones, tablets and computers through software to achieve real-time monitoring of the locking process. Various information can be traced and managed after locking：including date and time, station number, torque angle, torque curve, etc., data management is clearer and more effective. With the functions of torque detection, angle detection and data analysis, it can be used as quality control for locking. For more information, please go to KEMP official website or contact KEMP
