In the fast-paced world of precision engineering, having the right tools is vital for success. Our company specializes in the manufacturing and supply of high-quality Transducer Screwdriver designed to meet the diverse needs of various industries. As a dedicated manufacturer, supplier, and exporter, we are dedicated to delivering products that enhance efficiency and ensure outstanding performance.

Transducer Screwdriver

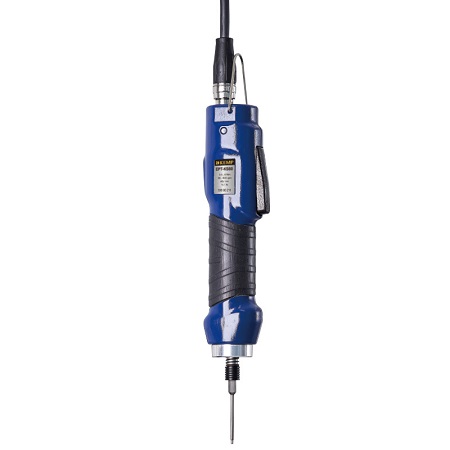

EPT Precision Torque Transducer Screwdriver - Inline Type EPT Series is the new A-class intelligent transducer assembly system from KEMP. Torque range:5~60kgf.cm/0.5~6.0Nm;Free speed:50~850rpm Drive Size:1/4 inch (Hex.) Inline versions available in lever start   Cover all assembly line requirements for an accurate, high-quality torque and angle-controlled tightening experience. EPT Series built-in compact transducer provides torque control with excellent repeatability. Feature unsurpassed ergonomics, soft touch design, temperature protection combined with full traceability and error-proofing capabilities. . KEMP EPT Ser. tools are the ideal solution for your Industry 4.0 production line. EPT Transducer screwdrivers work in combination with EPT-KC control units to gather, analyze and process detailed assembly information.

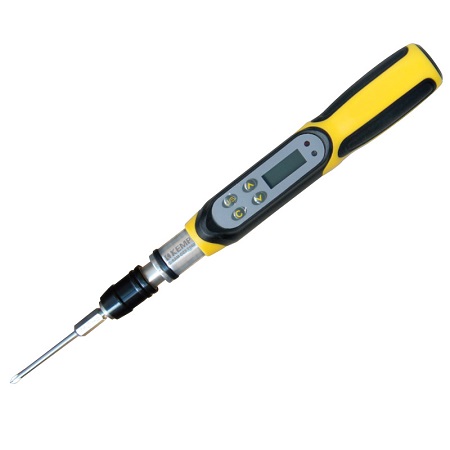

Mini Digital Torque Screwdriver Torque Range:10~200N.cm   Drive Size:1/4 inch (Hex.) LCD Readout,Three Units Selectable:cNm, kg-cm, in-lb Buzzer (warning signal)   Anti-slip Handle   Torque Accuracy CW:±2% CCW:±3%   P(Peak Hold )/ T(Track) Mode , Over Maximum torque records. Operating Temperature Range:-10°C~ 60°C , Storage Temperature Range:-20°C~ 70°C , Humidity:Up to 90% non-condensing Origin:Taiwan KEMP Digital Torque Screwdriver feedback real working torque through with Transducer. Test Pass:CE test, 1M Drop Test, 10G Vibration Test, Environmental test, Lift test Without data memory. For opt. function could selet with torque setting and data memory records. Accuracy is guaranteed from 20% to 100% full scale.

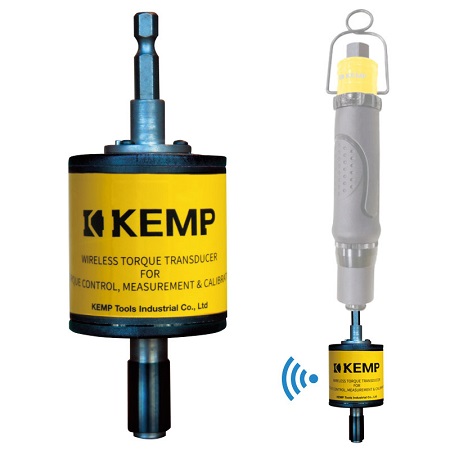

Wireless Torque Transducer & Controller Detection / Data transmission / Smart control / Compensation Versatile operation modes for option:Oil pulse Tools, Shut-off type Clutch, Torque multiplier, Click Torque Wrench Signal according to:Torque, Angle RF Frequency band:60 frequency band used with the E-BTM-C Torque Controller. Torque Transducer self-monitoring (electric+transmitting+torque+angle+usage count) On & off Reed switch (magnetic on/off). Auto off when non transmitting torque 5min up.   Software installation:Support Software & APP on Android & Microsoft. Torque curve display on Microsoft only.   LED signal light [ Blue Light on:RF ok / Blue- flicker:system initialize ] [  Orange on:Low bettery /  Orange- flicker:Error ]  [ Red Light on:charging ] [  Green Light on:charge complete ] WARNING:The dynamic wireless transducer will rotate during operation. Do not holding the transducer when operating to avoid accidental injury due to Incorrect operation. Origin:Taiwan KEMP Intelligence system We combining assembly tightening tools with KEMP's intelligent system products, and then upgrade to fastening tools with intelligent control, data recording and real-time monitoring. Application:Upgrade general electric / air / hand tools with function below. Fastening programming:With Fastening programming management, can set the function for fastening quantity,  sequence and cycle. Fastening process:Display on mobile phone, tablet, computer through software, with real-time monitoring, data display, visual prompt, and sound warning. Fastening result:Various information records, date and time, station number, torque angle, torque curve, data transmission and management traceability after fastening. Fastening QC:Can be used as quality inspection application torque detection, angle detection, data analysis.

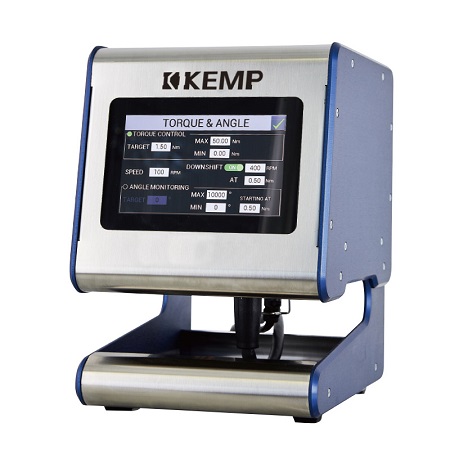

EPT Controllers Advanced unit EPT-KC controllers will operate all EPT series of tools. 5" Touch Screen 64 of programs;8 of Sequences 20 Input 21 Outputs Torque graph Bar code reading Torque & angle control Multiple parameters RS232 (2) / MINI USB / USB / Modbus TCP EPT Series of controllers give you full control of your fastening operation in an industry leading compact size. With features like touch screen color display, 16 programs and 64 sequences, intuitive programming interface, torque and angle control and graphs output, the EPT-KC units provide unmatched performance and value. The Controllers unit comes in two versions depending on the functionality level required. The KC1 basic unit includes serial and USB ports. In addition to that, KC1A advanced controllers feature a Modbus TCP communication port. Most communication protocols are available with the support of external modules.

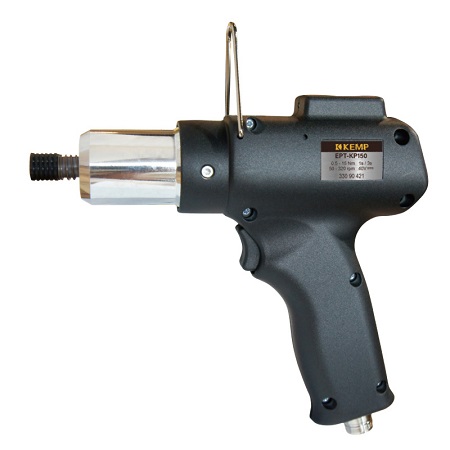

EPT Precision Torque Transducer Screwdriver - Pistol Type EPT Series is the new A-class intelligent transducer assembly system from KEMP.  A hand-held screwdriver paired with an excellent controller system enhances industrial-grade digitization Torque range:5~150kgf.cm/0.5~15.0Nm;Free speed:50~320rpm Drive Size:1/4 inch (Hex.) Trigger start, pistol grip available with top connector ( bottom connector is also available)   EPT Series transducer screwdriver cover all assembly line requirements for an accurate, high-grade torque and angle-controlled tightening experience. EPT Series built-in compact transducer offer torque control with excellent repeatability.   Feature unsurpassed ergonomics, soft touch design, temperature protection combined with full traceability and error-proofing capabilities. KEMP EPT Ser. tools are the ideal solution for your Industry 4.0 assembly line. EPT Transducer screwdrivers work in combination with EPT-KC control units to gather, analyze and process detailed assembly information.

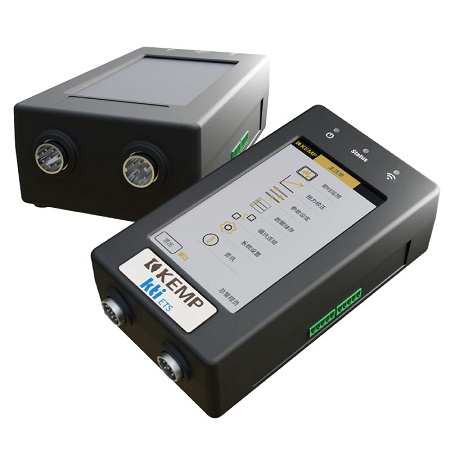

Torque Monitoring Controllers unit Used in electronic precision product assembly lines, intelligent control enhance product yield. Real-time monitoring Displaying real-time status:OK, All OK, NOK, unfinished rundown, cross threading, omission, incomplete cycle, torque curve, time and number of turns. Parameter Setting_ Fastening setting includes target Fastening setting includes target torque, fastening duration(time), number of turns, speed(RPM), screw count and system lock. Connect through Wifi on mobile devices, laptop, PC or other system for controls.  Online management without downloading software.   Built-in 16G memory capable of storing over 1 million set of fastening data Three levels of authorization for the most secure management on the assembly line. 5" touch screen for easy access to the control and settings. IO:8 Point (Output 4、Input 4) Access Authorization Three levels of authorization for the most secure management on the assembly line. Origin:Taiwan  KEMP ideal solution for Industry 4.0 production line. We provide immediate feedback on each tightening process.
Torque Monitoring Electric Screwdriver Making the Screwdriver Smart_ Apply to ETS Controllers unit Used in electronic precision product assembly lines, intelligent control enhance product yield. Torque range:2~20kgf.cm/0.2~2.0Nm;Free speed:200~1000rpm Patented Transducer Technology:High precision torque sensing mechanism with high sensitivity and durability. Coreless Brushless Motor:With low inertia characteristic, the motor performs with stability and precision at both high and low speed range. High Strength Clutch Mechanism:A proven design tested over 2 million fastening cycles at maximum torque. Hall Effect Switch High Strength Spring LED Lights & Buzzer - Built-in signal lights with three colors to inform the user about the status of each fastening cycle. Origin:Taiwan ETS screwdrivers work in combination with control units together. Their built-in transducer continuously reads torque and position of the screw and sends the gathered data to the controller for analysis. KEMP ETS Ser. provide immediate feedback on each tightening process, be able to check at a glance whether the part is correctly tightened or not.
Our range features cutting-edge technology that provides exceptional torque control and accuracy, making these tools ideal for delicate applications. Each screwdriver is meticulously engineered for durability and reliability, allowing you to work with confidence. We adhere to stringent quality standards to ensure our products perform consistently under demanding conditions.

Located in Taiwan, we take pride in being recognized as a provider of the best tools in the market. Our experienced team is committed to helping you select the right equipment tailored to your specific requirements, ensuring maximum productivity and minimal downtime.

When you choose our products, you are not just investing in tools; you are partnering with a brand that prioritizes quality and customer satisfaction. We are here to support you throughout the entire process, from product selection to comprehensive after-sales service. Reach out to us today to explore our innovative offerings and discover how we can elevate your operations. Together, let’s achieve remarkable results with our exceptional

Transducer Screwdriver

!
